Description

Revolutionary 1080W Dual‑Channel Charger for 6‑Cell LiPo / LiHV Packs

The SkyRC PC1080 is a high‑power, dual‑channel charger engineered for professional and industrial drone operations. Each channel delivers up to 540W power and 20A current, enabling lightning-fast charging for large capacity 6S batteries.

Key Features:

• Dual simultaneous channels: Charge two 6S LiPo or LiHV packs concurrently.

• Total output power of 1080W (540W × 2) with up to 20A current per channel.

• Internal resistance meter and cell voltage readout for battery health diagnostics.

• Supports LiPo and LiHV chemistries with manual toggling.

• Three working modes: Fast Charge, Balance Charge, and Storage.

• Synchronization mode allows daisy‑chaining chargers via data cable (master/slave mode) for batch operations.

• Supports up to 12‑pack sequential charging when paired with the optional SkyRC G630 hub.

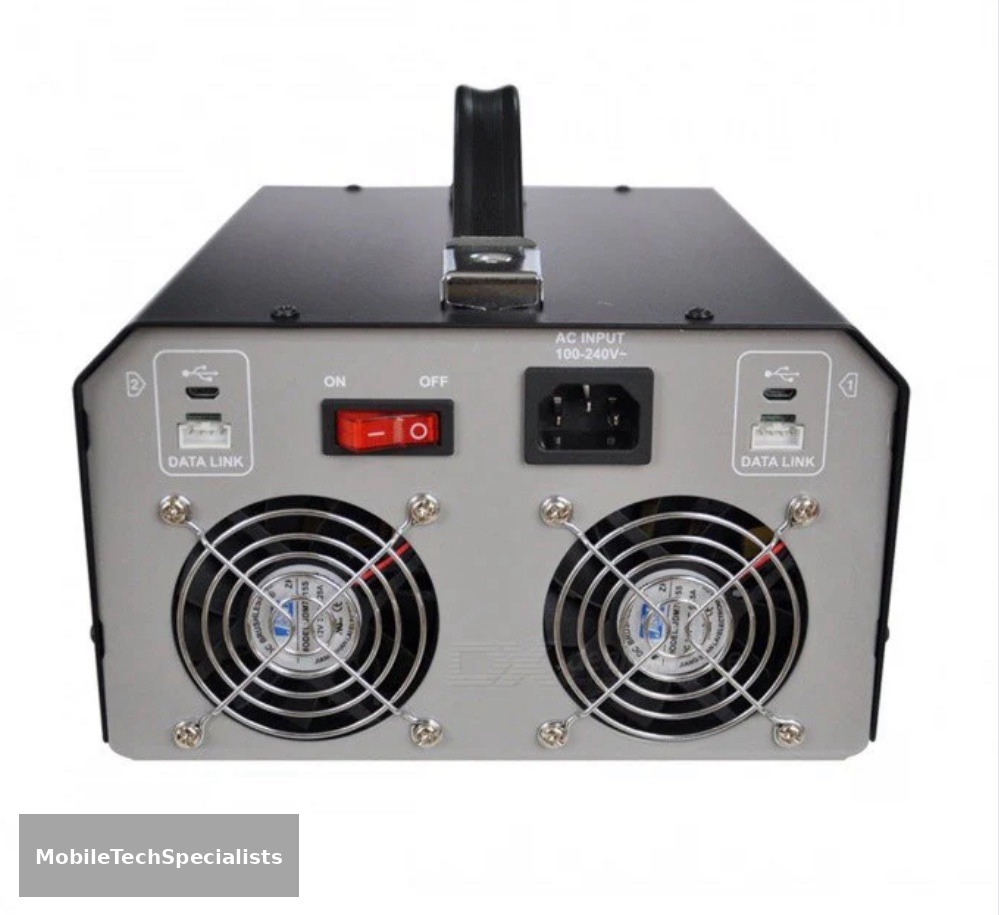

• Built with active PFC, switched‑mode SMPS, conformal coating, dual ball‑bearing cooling fans, and high‑density aluminum heatsinks for stability in harsh environments.

• Safety features include short‑circuit, reverse polarity, and over-temperature protection, and compliance with CE, RoHS, FCC standards.

Technical Specifications:

Specification Details

Input Voltage 100–240 VAC

Output Power 1080 W (2 × 540 W)

Charge Current per Channel 1–20 A

Balance Current ~1.2 A per channel

Supported Battery Types 6S LiPo / LiHV

Discharge Mode Power 50 W per channel

Dimensions (W × D × H) 272 × 202 × 118.6 mm

Net Weight ~4.88 kg (~5 kg)

Includes: PC1080 Charger, AC power cord, instruction manual. Charging hub (G630) sold separately.

Specification,Details

Input Voltage,100–240 VAC

Output Power,1080 W (2 × 540 W)

Charge Current per Channel,1–20 A

Balance Current,~1.2 A per channel

Supported Battery Types,6S LiPo / LiHV

Discharge Mode Power,50 W per channel

Dimensions (W × D × H),272 × 202 × 118.6 mm

Net Weight,~4.88 kg (~5 kg)
